Rolling Sleeves

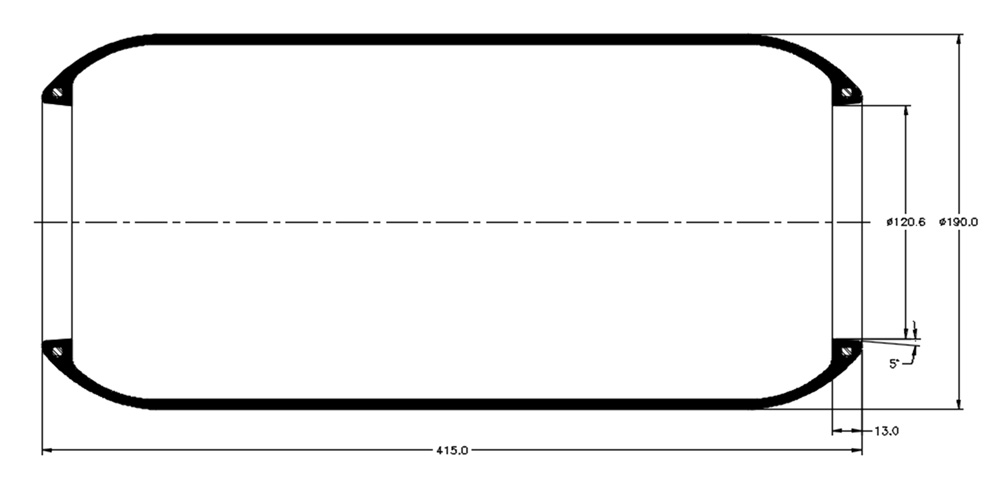

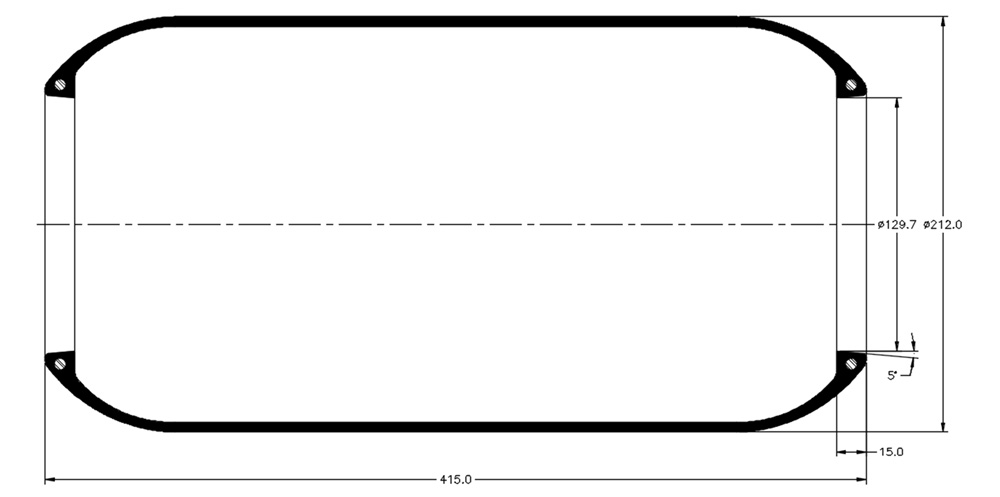

Part No. RS-415/285

Design range 185 – 425mm
Loading capacity at 5bar pressure 18.2kN
Loading capacity at 6bar pressure 22.3kN
Maximum diameter 285mm
Operating temperature -40° – +60°C
Frequency 1.15 – 1.20Hz
Material Natural Rubber

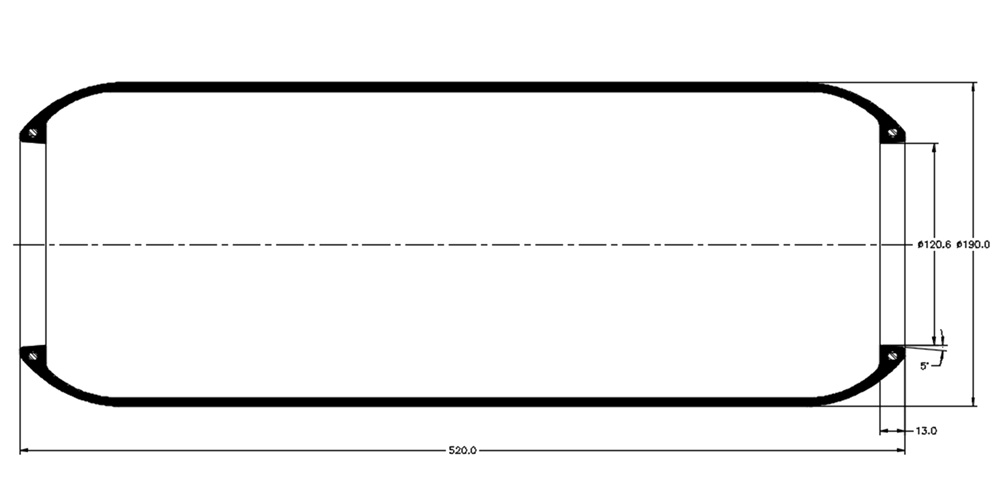

Part No. RS-520/285

Design range 230 – 530mm
Loading capacity at 5bar pressure 18.5kN
Loading capacity at 6bar pressure 23.5kN
Maximum diameter 285mm
Operating temperature -40° – +60°C
Frequency 1.10 – 1.15Hz
Material Natural Rubber

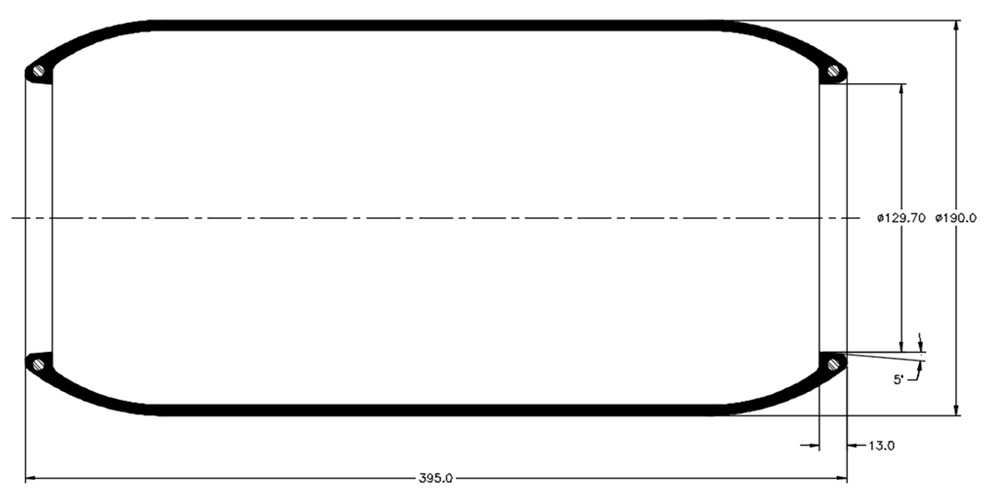

Part No. RS-395/285

Design range 190 – 405mm
Loading capacity at 5bar pressure 17.2kN
Loading capacity at 6bar pressure 22.1kN
Maximum diameter 285mm
Operating temperature -40° – +60°C
Frequency 1.15 – 1.20Hz
Material Natural Rubber

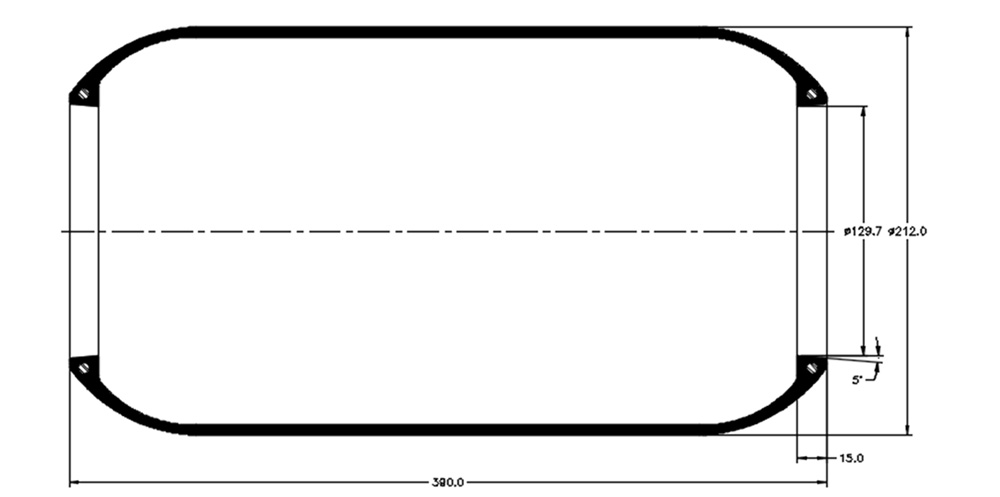

Part No. RS-390/295

Design range 190 – 400mm
Loading capacity at 5bar pressure 19.2kN
Loading capacity at 6bar pressure 27.5kN
Maximum diameter 290mm
Operating temperature -40° – +60°C
Frequency 1.10 – 1.15Hz
Material Natural Rubber

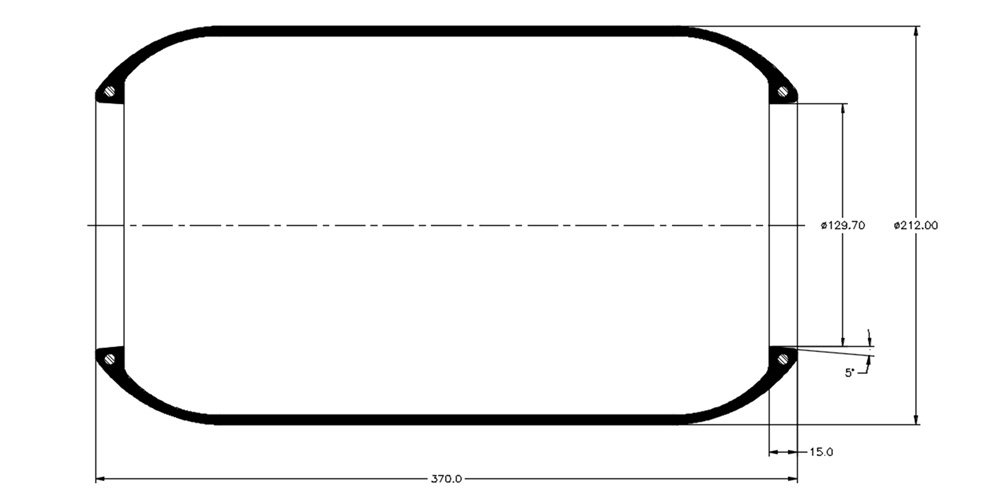

Part No. RS-370/295

Design range 190 – 380mm
Loading capacity at 5bar pressure 19.0kN
Loading capacity at 6bar pressure 24.1kN
Maximum diameter 290mm
Operating temperature -40° – +60°C
Frequency 1.15 – 1.20Hz
Material Natural Rubber

Part No. RS-415/285

Design range 210 – 430mm
Loading capacity at 5bar pressure 18.4kN
Loading capacity at 6bar pressure 22.5kN
Maximum diameter 285mm
Operating temperature -40° – +60°C
Frequency 1.10 – 1.15Hz
Material Natural Rubber

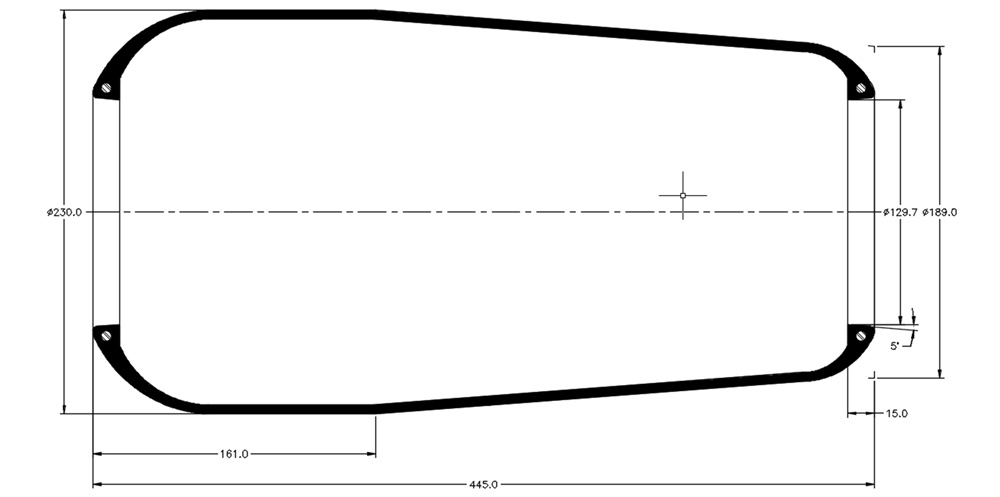

Part No. RS-445/285

Design range 200 – 460mm
Loading capacity at 5bar pressure 19.8kN
Loading capacity at 6bar pressure 24.6kN
Maximum diameter 300mm
Operating temperature -40° – +60°C
Frequency 1.05 – 1.10Hz
Material Natural Rubber

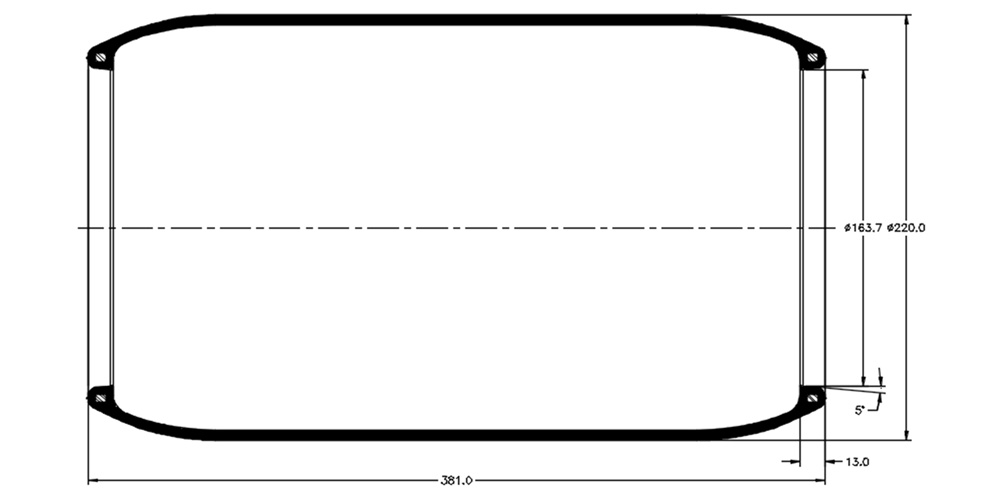

Part No. RS-380/300

Design range 190 – 390mm
Loading capacity at 5bar pressure 21.8kN
Loading capacity at 6bar pressure 26.2kN
Maximum diameter 300mm
Operating temperature -40° – +60°C
Frequency 1.10 – 1.15Hz
Material Natural Rubber

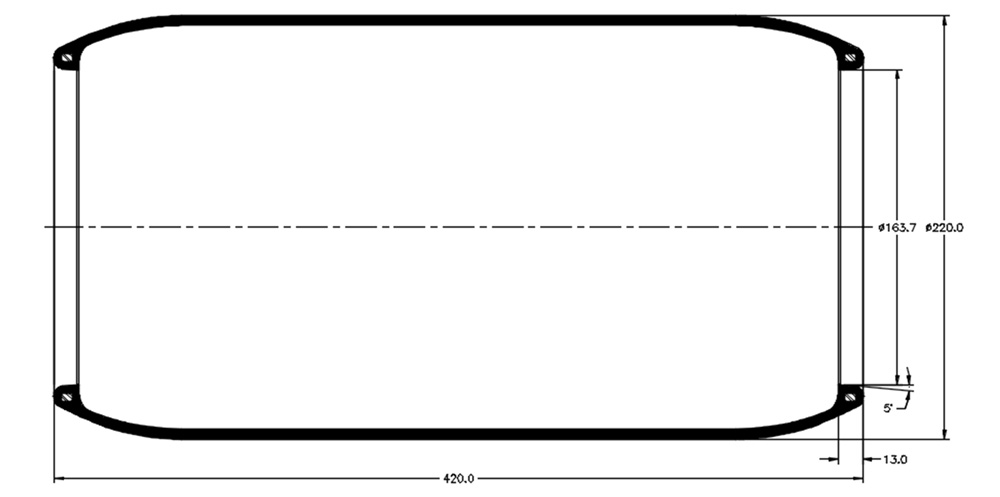

Part No. RS-420/300

Design range 190 – 430mm
Loading capacity at 5bar pressure 19.8kN
Loading capacity at 6bar pressure 24.3kN
Maximum diameter 300mm
Operating temperature -40° – +60°C
Frequency 1.10 – 1.15Hz
Material Natural Rubber

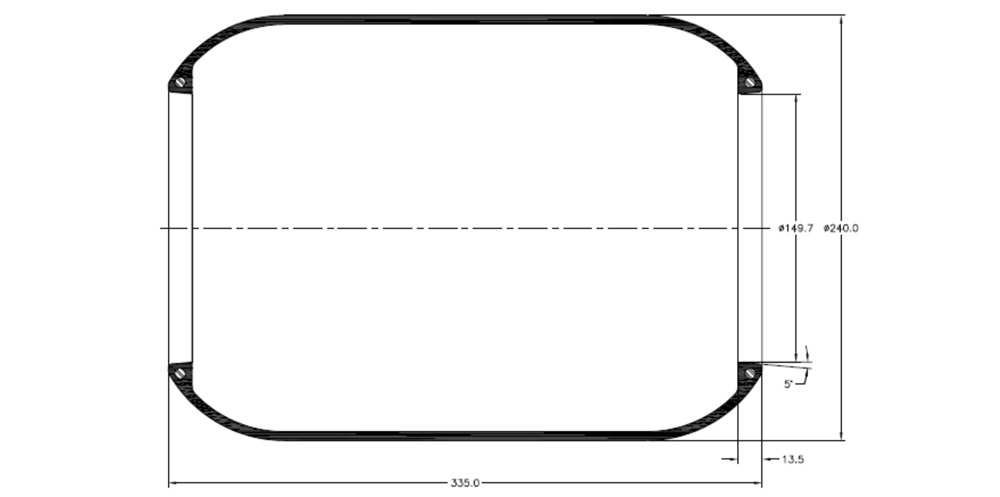

Part No. RS-335/310

Design range 190 – 345mm
Loading capacity at 5bar pressure 26.2kN
Loading capacity at 6bar pressure 31.5kN
Maximum diameter 310mm
Operating temperature -40° – +60°C
Frequency 1.20 – 1.25Hz
Material Natural Rubber

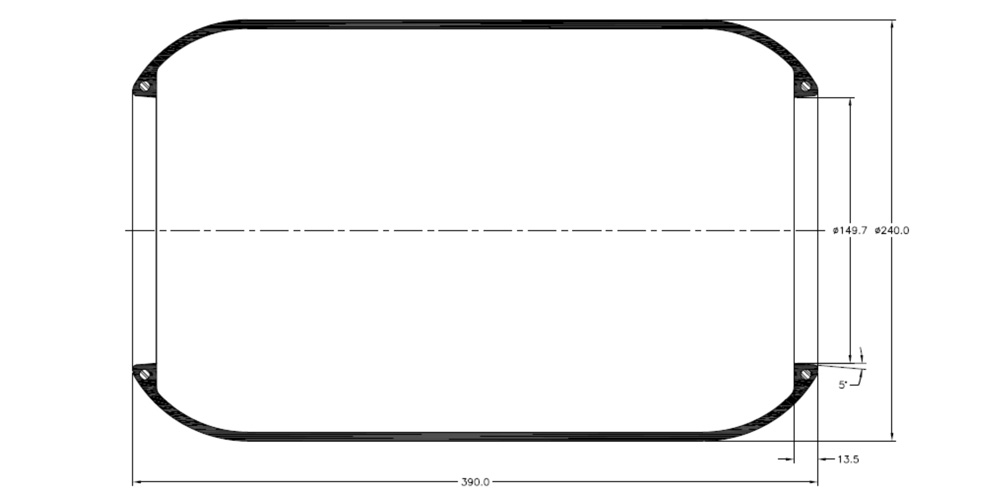

Part No. RS-390/310

Design range 205 – 400mm
Loading capacity at 5bar pressure 25.0kN
Loading capacity at 6bar pressure 35.5kN
Maximum diameter 310mm
Operating temperature -40° – +60°C
Frequency 1.20 – 1.25Hz
Material Natural Rubber

Part No. RS-370/340

Design range 205 – 385mm
Loading capacity at 5bar pressure 27.1kN
Loading capacity at 6bar pressure 36.8kN
Maximum diameter 360mm
Operating temperature -40° – +60°C
Frequency 1.15 – 1.20Hz
Material Natural Rubber
